CPAC-TR-25SR-ADP

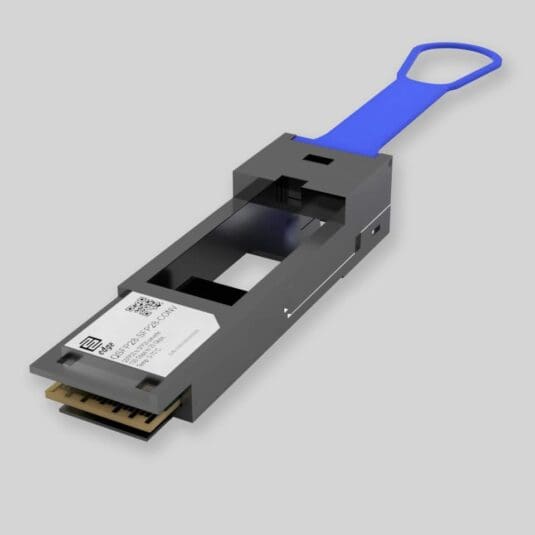

CPAC-TR-25SR-ADP Check Point Compatible QSFP28 SFP28 Converter

# Key Highlights
  • Type: Adapter QSFP28 to SFP28
  • Compatibility: Check Point Compatible
  • Power Consumption: Max: 0.25W
  • Tx/Rx Wavelength: As SFP Module
  • Media Type: As SFP Module
  • Optical Budget: As SFP Module
  • Max. Distance: As SFP Module
  • Data Rate: 10G to 28G
  • Temperature: Standard 0°-70°C
  • Hot Pluggable
# Pricing & Ordering
SKU: QSFP28-SFP28-CONV-CP

45.05

Standard recommended retail price without VAT.

Lead Time: Below 1 Week in EU Countries
# Quality Assurance

Because of our comprehensive Testing Program, we are confident on quality of our products. Such approach empower us to cover all our products with:

# Key Technical Data
Media Type:

As inserted SFP+ / SFP28 Module

Tx Wavelength:

As inserted SFP+ / SFP28 Module

Rx Wavelength:

As inserted SFP+ / SFP28 Module

Minimum Optical Budget:

As inserted SFP+ / SFP28 Module

Supported Data Rate:

10.31 – 25.78 Gbps

Supported Applications:

25G Ethernet (25.78Gbps), 10G Ethernet (10.31Gbps)

DDM/DOM:

Supported

Temperature Range:

Standard 0 to 70°C

Power:

+3.3V single power supply

Power Consumption:

Max 0.25W

Compliance:

RoHS 6 compliant(lead free), CE, QSFP28 MSA, SFF-8436 SFP+ MSA SFF-8431

# Product Documentation
Multi-Vendor Compatible QSFP28-SFP28-CONV Adapter Module Datasheet

Check Point Compatible CPAC-TR-25SR-ADP is based on our product QSFP28-SFP28-CONV. When You will order it will be encoded to be compatible with Check Point equipment and it will be labeled with part number: QSFP28-SFP28-CONV-CP, where CP means Check Point Compatible. Above You can download the datasheet of our QSFP28-SFP28-CONV.

# Product Description

  Our Check Point Compatible CPAC-TR-25SR-ADP QSFP28 to SFP28 Adapter is based on our QSFP28-SFP28-CONV product, which has the same parameters and is manufactured in accordance with the same industry standards as its OEM counterpart. Adapter allows for a smooth shift from a quad-lane port to a single-lane optical transceiver while maintaining high performance. Because it provides the option to employ lower speed SFP28 modules in empty QSFP28 ports or when a lower speed connection is required, it enables for a much more flexible migration path towards 100G Ethernet. Our CPAC-TR-25SR-ADP Check Point compatible Adapter can be plugged directly into equipment that has a 100G QSFP28 port, and SFP28 transceivers can be inserted into the adapter to expand the installation flexibility. The SFP28 transceiver will transmit using the first lane 25Gbps from all four avaliable 100G QSFP28 lanes. The most common scenarios in which our Check Point compatible QSFP28 to SFP28 Adapter is used are when datacom systems are being upgraded to higher switching capacity hardware. This migration process is normally carried out in a step-by-step, node-by-node fashion, however it may reach a point where a new hardware QSFP28 port is required to be linked to an older hardware SFP28 port on occasion.

    Our CPAC-TR-25SR-ADP Check Point compatible adapter is CE/RoHS certified, it meets product safety standards, and is compliant with SFP28 Multi Source Agreement (MSA) SFF-8402 industry standard. To ensure smooth operation, we have completed compatibility tests for this adapter with the most recent platforms of Check Point networking equipment, allowing us to encode transceiver EEPROM memory to be compatible with and work seamlessly in Check Point platforms. We are committed to quality, therefore before delivering our products, we conduct stringent quality inspections that include optical parameter measurements, connector cleanliness tests, and EEPROM memory data validation tests. If you have any questions, please Contact us. We will gladly learn about your needs and recommend the best compatible products from our portfolio.
