Because of our comprehensive Testing Program, we are confident on quality of our products. Such approach empower us to cover all our products with:
Media Type: | Single-Mode Fiber (SMF) |
---|---|
TX Wavelength: | 1510 nm |
RX Wavelength: | 1270-1610 nm |
Minimum Optical Budget: | 23 dB |
Maximum Distance: | 80km |
Supported Data Rate: | 1.24-11.32Gbps |
Supported Applications: | 10G Ethernet (10.31Gbps), Gigabit Ethernet (1.25 Gbps), 10G Fiber Channel (10.52 Gbps), 8G Fiber Channel (8.5 Gbps), 4G Fiber Channel (4.25 Gbps), 2G Fiber Channel (2.125 Gbps), 1G Fiber Channel (1.0625 Gbps), STM-16 (2.488 Gbps), STM-64 (9.95Gbps), ODU0 (1.244Gbps) |
DDM/DOM: | Support |
Temperature Range: | Standard 0°-70°C |
Connectors: | Double LC |
Tx Wavelength Bandwidth: | 20nm (1500 – 1520 nm) |
Rx Wavelength Bandwidth: | G.694.2 CWDM Grid (1270-1610nm) |
Minimum Transmitting Power: | 0 dB |
Maximum Transmitting Power: | 4 dB |
Receiver Sensitivity: | -23 dBm |
Receiver Overload: | -10 dBm |
Dispersion: | 1600 ps/nm |
Transmitter Type: | EML Laser |
Receiver Type: | PIN photodiode |
Power: | +3.3V single power supply |
Chipset: | MAXIM, MINDSPEED, SEMTECH |
Compliance: | CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, INF-8077i XFP MSA Rev.4.5, RoHS |
Transceiver Type: | XFP |

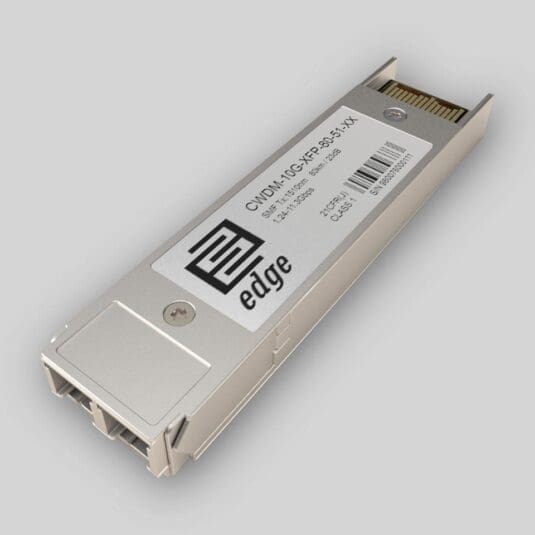

Nortel Compatible NTTP84HC XFP Module is based on our product CWDM-10G-XFP-80-51. When You will order it will be encoded to be compatible with Nortel equipment and it will be labeled with part number: CWDM-10G-XFP-80-51-NT, where NT means Nortel Compatible. Above You can download datasheet of our CWDM-10G-XFP-80-51 product.
Nortel compatible NTTP84HC is XFP (10 Gigabit Small Form Factor Pluggable Module) Transceiver, operating over Double Fiber CWDM Single-Mode Fiber (SMF) optical cable. It has minimum guaranteed optical budget of 23 dB, with in most cases is enough to reach about 80 km distance. However, distance is just indicative parameter calculated for comfort of identification. Eventually we calculate distance taking in account minimal optical budget and average attenuation of optical cabling in industry. This transceiver use top quality EML Laser transmitter with operating at nominal wavelength 1510 nm and 1270-1610 nm PIN Photodiode receiver. It support DDM/DOM optical diagnostics, with provide diagnostic information about the present operating conditions. Nortel compatible NTTP84HC operates in Standard 0°-70°C temperature range and has Double LC interface. XFP support 1.24-11.32Gbps data rate and such applications as 10G Ethernet (10.31Gbps)|Gigabit Ethernet (1.25 Gbps)|10G Fiber Channel (10.52 Gbps)|8G Fiber Channel (8.5 Gbps)|4G Fiber Channel (4.25 Gbps)|2G Fiber Channel (2.125 Gbps)|1G Fiber Channel (1.0625 Gbps)|STM-16 (2.488 Gbps)|STM-64 (9.95Gbps)|ODU0 (1.244Gbp. XFP Double Fiber CWDM optical transceiver is multi-purpose module used in number of different places of today’s networking. Consequently, most popular applications are Internet Service Provider (ISP) Fiber To The Home aggregation and backbone, Various Data Communication 10G Ethernet & SDH/SONET/OTN Links, Data Center networking for both – Ethernet and Fiber Channel SAN Networking and other optical links.
Transceiver is CE/RoHS certified and it is Compliant with product safety standards. We perform compatibility tests for Nortel compatible NTTP84HC XFP Transceiver with latest platforms of Nortel networking equipment, which allows us to encode transceiver EEPROM memory to be compatible and work seamlessly with Nortel platforms. However, our optical transceivers are compliant to XFP mutli-source agreement (MSA) INF-8077i (Rev. 4.5, 2005) industry standard as well. Because our focus is providing top quality service, we are performing serious quality checks before delivery of our products. As a result, we do optical parameter measurements, connector cleanness tests and XFP transceiver EEPROM memory data validation tests.
