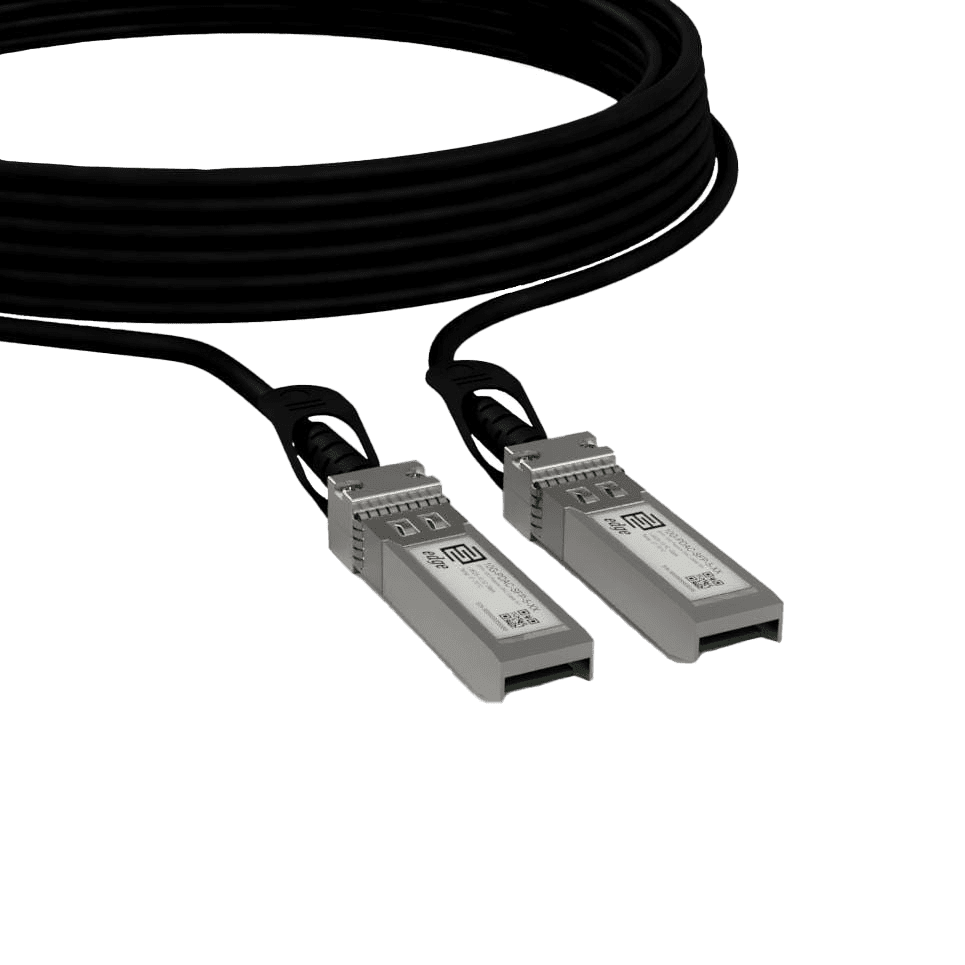

10G-PDAC-SFP

Multi-Vendor MSA Compatible SFP+/SFP+ 10G Passive  Twinax Cable

# Key Highlights
  • Type: 10G Passive Twinax Cable
  • Compatibility: Multi-Vendor MSA Compatible
  • Media Type: Passive Copper Cable
  • Max. Distance: 7 m
  • Data Rate: 1.0625-10.52 Gbps
  • Temperature: Standard 0°-70°C
  • Low Power Consumption: 0.5W (Typical)
# Pricing & Ordering
SKU: 10G-PDAC-SFP

7.1920.20

Standard recommended retail price without VAT.

Lead Time: Next Business Day from Order Confirmation
Clear
# Quality Assurance

Because of our comprehensive Testing Program, we are confident on quality of our products. Such approach empower us to cover all our products with:

# Key Technical Data
Media Type:

Twinax Cable

DAC Copper Type:

AWG24, AWG30

Maximum Distance:

0.5m, 0.65m, 1m, 1.2m, 1.5m, 2m, 2.5m, 3m, 4m, 5m, 6m, 7m

Supported Data Rate:

1.0625-10.52 Gbps

Supported Applications:

10G Ethernet (10.31Gbps), Gigabit Ethernet (1.25 Gbps), 10G Fiber Channel (10.52 Gbps), 8G Fiber Channel (8.5 Gbps), 4G Fiber Channel (4.25 Gbps), 2G Fiber Channel (2.125 Gbps), 1G Fiber Channel (1.0625 Gbps), CPRI option 2 (1228.8 Mbps), CPRI option 3 (2.458 Gbps), CPRI option 5 (4.915 Gbps), CPRI option 6 (6.144 Gbps), CPRI option 7 (9.830 Gbps), CPRI option 8 (10.138 Gbps), OBSAI RP3 x 2 (1.536 Gbps), OBSAI RP3 x 4 (3.072 Gbps), OBSAI RP3 x 8 (6.144 Gbps)

DDM/DOM:

Supported

Temperature Range:

Standard 0°-70°C

Connectors:

SFP+

Power:

+3.3V single power supply

Power Consumption:

0.5W

MTBF:

1 000 000 Hours

Compliance:

CE, RoHS, SFF-8431, SFP+ MSA

# Product Documentation
# Product Description

  10G-PDAC-SFP is Multi-Vendor MSA Compatible 10G Passive Twinax Cable, operating over copper cable. 10G Passive twinax cable is equipped with MSA standard compatible SFP+ transceiver assembly at each end of cable. Main difference distinguishing Passive from Active Twinax cables is that Passive cables do not support any electrical transmission signal boosting on regeneration. 10G Passive Twinax cable support 1.0625-10.52 Gbps multi-rate communication and such applications as 10G Ethernet (10.31Gbps) | Gigabit Ethernet (1.25 Gbps) | 10G Fiber Channel (10.52 Gbps) | 8G Fiber Channel (8.5 Gbps) | 4G Fiber Channel (4.25 Gbps) | 2G Fiber Channel (2.125 Gbps) | 1G Fiber Channel (1.0625 Gbps) | CPRI option 2 (1228.8 Mbps) | CPRI option 3 (2.458 Gbps) | CPRI option 5 (4.915 Gbps) | CPRI option 6 (6.144 Gbps) | CPRI option 7 (9.830 Gbps) | CPRI option 8 (10.138 Gbps) | OBSAI RP3 x 2 (1.536 Gbps) | OBSAI RP3 x 4 (3.072 Gbps) | OBSAI RP3 x 8 (6.144 Gbps). Most popular applications of 10G Passive Twinax Cables are cost effective close range interconnections within equipment room of telecom operators or data centers, interconnecting LAN or SAN applications with speeds up to 10G.

    10G Passive Twinax Cable is CE/RoHS certified and it is Compliant with product safety standards. 10G-PDAC-SFP is fully compliant to SFP+ Multi Source Agreement SFF-8432. Consequently, it means that module is compatible with 80% of networking equipment, where is not implemented a special algorithm for protection against third party modules. However – we can provide 10G Passive Twinax Cable with custom-encoded firmware in order to make it work almost in any equipment and we can support encoding of each end to support different vendor equipment, allowing using Passive Twinax Cable as cross-platform interconnection medium. We will be glad to hear Your requirements and our sales team will check all relevant details with You during ordering procedure. Our focus is providing top quality ser­vice, we are performing serious quality checks before delivery of our products.
