1G-NIC-I350-2O

Network Interface Card: 1G-NIC-I350-2O

RJ-45 CAT 5 (100m)
# Key Highlights
  • NIC Category: Dual Port 1G SFP PCIe
  • Controller: Intel® I350
  • System Interface Type: PCIe v2.1 x4 (5GT/s or 2.5GT/s)
  • Ports: 2x1G SFP
  • Data rate per port: 1000 Mbps
  • Network Operating Systems (NOS): Windows 32-bit/64-bit, Linux, FreeBSD
  • Management: Intel® PROSet Utility
  • Unified Networking: iSCSI, NFS
  • Cables support: RJ-45 CAT5 (100m)
  • Bracket Height: Low Profile & Full Height
# Pricing & Ordering
SKU: 1G-NIC-I350-2O

€61.61

Standard recommended retail price without VAT.

Lead Time: Below 1 Week in EU Countries
# Quality Assurance

Because of our comprehensive Testing Program, we are confident on quality of our products. Such approach empower us to cover all our products with:

# Key Technical Data
Product type:

Network Interface Cards
NIC Category:

Dual Port 1G SFP PCIe
Controller Silicon:

Intel® I350
Controller type:

Ethernet
Connector type:

SFP
Number of ports:

2
Data rate per port:

1000 Mbps
Interconnection Distance:

Per SFP used
Bus interface:

PCIe v2.1 x4
Bus transfer rate:

5GT/s or 2.5GT/s
Storage Over Ethernet:

iSCSI, NFS
Network Operating Systems (NOS):

Windows 32-bit: 7, 8, 8.1, 10
Windows 64-bit: 7, 2008 R2, 8, 2012, 8.1, 2012 R2, 10, 2016, 2019
Linux: RHEL 6.x/7.x, SUSE 11.x/12.x, Ubuntu 14.x/16.x
FreeBSD: 10.x/11.x
LED Status Indicators:

Green=1 Gb/s. Not illuminated=no link
Power:

Power consumption (max): 5.5W
Operating voltage: 3.3V and 12V
Environmental Specifications:

Operating temperature: 0 °C to 55 °C
Storage temperature: -40 °C to 70 °C
Relative Humidity: 5% to 90% (non-condensing)
Physical Characteristics:

Dimensions (W x H): 146mm x 69mm
Ships with low-profile bracket attached to interface card.
Standard bracket included in packaging.
I/O, Virtualization, Manageability and Advanced Software Features:

As per NIC controller
Compliance:

CE, FCC, ROHS
# Product Documentation
1G-NIC-I350-2O Datasheet
# Product Description

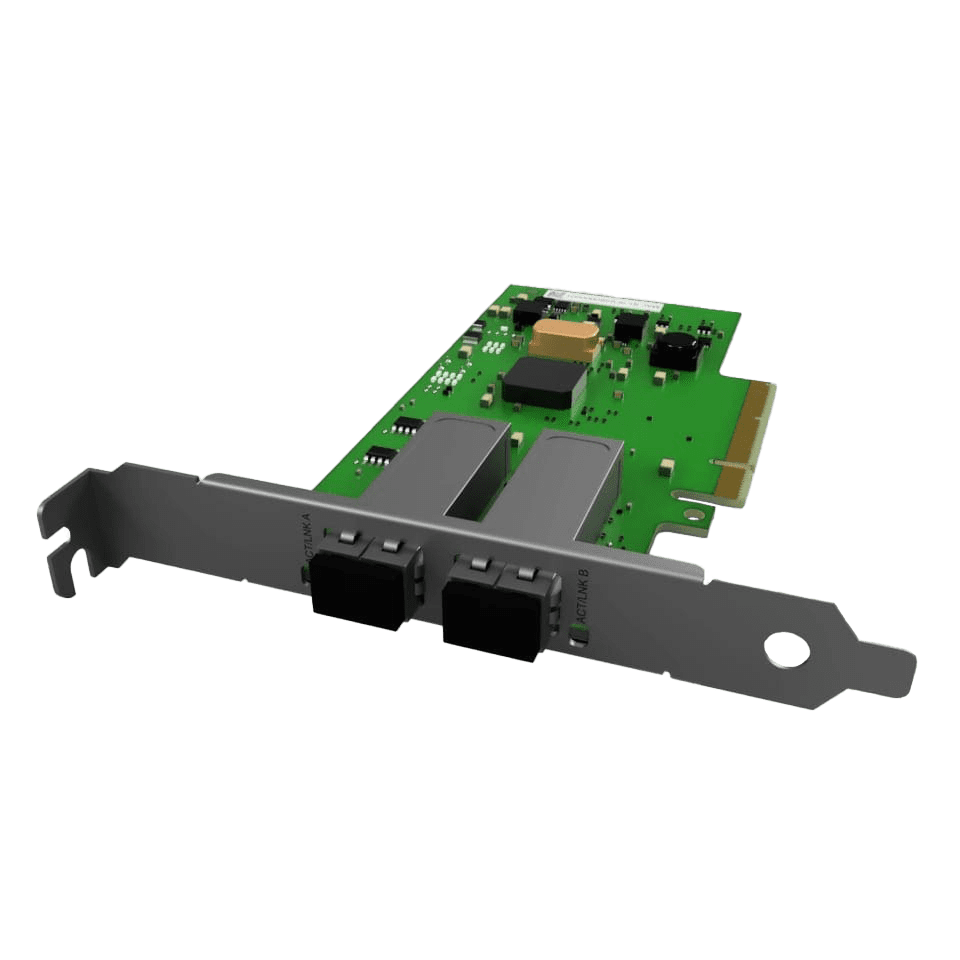

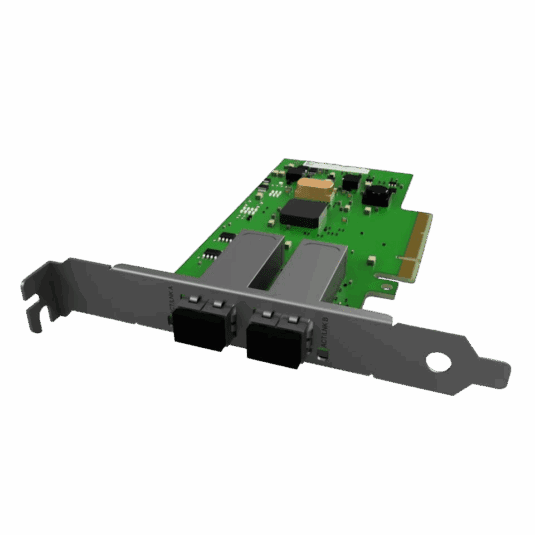

EDGE Optic 1G-NIC-I350-2O is Dual Port 1 Gigabit Ethernet SFP PCI-Express Network Interface Card, which is based on Intel® I350 Chipset. 1G-NIC-I350-2O card support DMA Coalescing (DMAC) which help to reduce power by coalescing, aligning, and synchronizing DMA. 1G-NIC-I350-2O cards chipset supports leading I/O virtualization features, several options for remote boot and wide manageability features.

1G-NIC-I350-2O can run on most network operating systems and can be used as a compatible alternative for Intel, HPE, Dell, Lenovo, IBM, Cisco, Broadcom, Marvel, Qlogic, Emulex, Mellanox, Supermicro and many other brand Network Interface Cards.

For better overview, You are welcome to use our PCIe Network Interface Card Guide.
