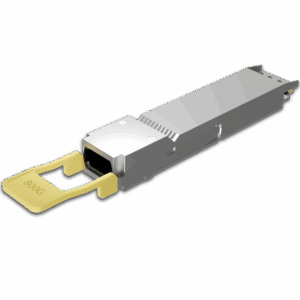

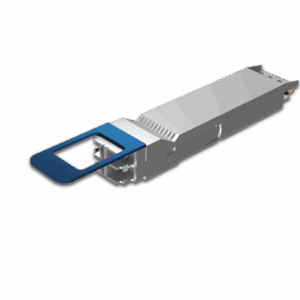

800G OSFP800 Optical Transceivers
In this MSA-compatible 800G OSFP series, you will find high-performance optical transceiver modules designed for next-generation 800G Ethernet links over multimode and single-mode fiber. The series includes SR8 and 2×SR4 modules for short-reach multimode fiber (MMF) links, DR8 and 2×DR4 modules for parallel single-mode fiber (SMF) connections up to 500 m, and 2×FR4 and 2×LR4 modules for extended-reach SMF transmission up to 10 km. Linear pluggable variants such as SR8 LPO, DR8 LPO, and 2×DR4 LPO provide DSP-free, low-latency solutions for various architectures
800G QSFP800 Short Range Optical Transceivers
In this MSA-compatible 800G OSFP800 Short-Range (SR) selection, you will find SR8 and 2×SR4 modules designed for short-reach multimode fiber (MMF) links. These transceivers operate at 850 or 1310nm, use MPO-16 or dual MPO-12 connectors, and support 800GAUI-8 PAM4 electrical interfaces for up to 20–50 m transmission depending on OM3/OM4 fiber.
800G QSFP800 Long Range Optical Transceivers
In this MSA-compatible 800G OSFP800 Long-Range (LR) selection, you will find 2×FR4 and 2×LR4 modules designed for extended-reach single-mode fiber (SMF) links. These transceivers operate on 4-lane CWDM wavelengths, use dual-duplex LC connectors, and support 800GAUI-8 PAM4 electrical interfaces for reaches of 2 km (FR4) and 10 km (LR4).

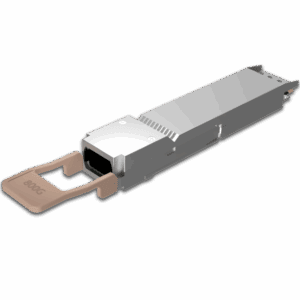

800G OSFP800 Linear Optical Transceiver
In this MSA-compatible 800G OSFP800 Linear Pluggable Optical (LPO) selection, you will find SR8 LPO, DR8 LPO, and 2×DR4 LPO modules designed for low-power, low-latency datacenter links. These DSP-free transceivers support 800GAUI-8 PAM4 electrical interfaces and provide reach from 20–50 m over MMF (SR8 LPO) up to 500 m over SMF (DR8 / 2×DR4 LPO).
