E100G-QSFP28-LR1

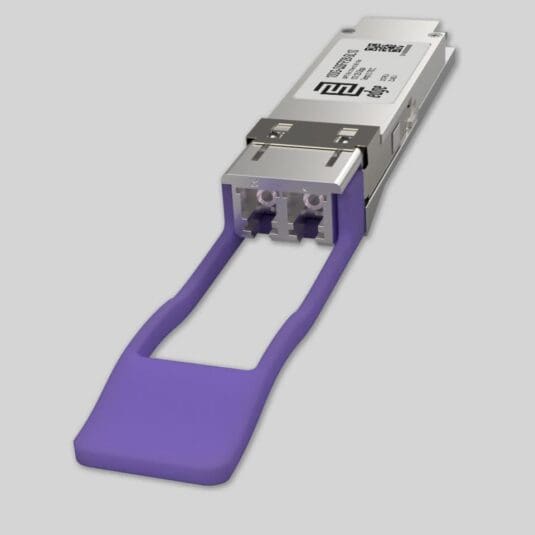

E100G-QSFP28-LR1 Brocade Compatible 100G QSFP28 10KM Transceiver

# Key Highlights
  • Type:100G-LR Single Lambda PAM4 QSFP28
  • Compatibility:Brocade Compatible
  • Tx/Rx Wavelength:1304.5- 1317.5 nm
  • Laser:EML TOSA
  • Fiber Type:Single-Mode Fiber (SMF)
  • Connectors:Double LC
  • Optical Budget:6.3 dB
  • Max. Distance:10km
  • Optical Data Rate / Baud Rate:53.125 Gbps
  • Modulation format:PAM4
  • Data Rate:106.25 Gbps
  • FEC Forward Error Correction:Supported
  • DDM/DOM:Supported
  • Power Consumption:≤4.5W
  • Temperature:Standard 0°-70°C
# Pricing & Ordering
SKU: 100G-QSFP28-SL10-BR

240.24

Standard recommended retail price without VAT.

Lead Time: Below 1 Week in EU Countries
# Quality Assurance

Because of our comprehensive Testing Program, we are confident on quality of our products. Such approach empower us to cover all our products with:

# Key Technical Data
Media Type:

Single-Mode Fiber (SMF)

Connectors:

Double LC

TX Wavelength:

1310 nm

RX Wavelength:

1310 nm.

Minimum Optical Budget:

6.3 dB

Maximum Distance:

10km

Supported Data Rate:

106.25 Gbps

Supported Applications:

100G Ethernet (103.125Gbps)

DDM/DOM:

Supported

CDR (Clock and Data Recovery) chip

Supported

Forward Error Correction (FEC):

Host FEC Supported

Transmitter Type:

EML TOSA

Tx Wavelength Bandwidth:

1304.5- 1317.5 nm

Average Launch Power (Min) Each Lane:

-1.4 dBm

Average Launch Power (Max) Each Lane:

4.5 dBm

Extinction Ratio (Min):

3.5 dB

Receiver Type:

PIN ROSA

Rx Wavelength Bandwidth:

1304.5- 1317.5 nm

Average Receiver Sensitivity (Min) Each Lane:

-7.7 dBm

Average Receiver Sensitivity (Max) Each Lane:

4.5 dBm

Receiver Overload:

5.5 dBm

Temperature Range:

Standard 0°-70°C

Storage Temperature:

-40° to 85°C

Relative Humidity:

0 to 85%

Power Consumption:

≤4.5W

Power:

+3.3V

Chipset:

Macom, Sumitomo, Samtech, Oclaro, Avago, II-IV

Compliance:

100G Lambda MSA, Class 1 FDA, IEC60825-1 Laser Safety Compliant, RoHS-6, CE, QSFP28 MSA, SFF-8636, SFF-8665

# Product Documentation
100G-QSFP28-SL10 Datasheet

Brocade Compatible E100G-QSFP28-LR1 is based on our product 100G-QSFP28-SL10. When You will order it will be encoded to be compatible with Brocade equipment and it will be labeled with part number: 100G-QSFP28-SL10-BR, where BR means Brocade Compatible. Above You can download the datasheet of our 100G-QSFP28-SL10.

# Product Description

Our Compatible Brocade E100G-QSFP28-LR1 QSFP28 transceiver is based on our 100G-QSFP28-SL10 product, which has the same parameters and is manufactured in accordance with the same industry standards as its OEM counterpart. Our compatible module version is designed for operation over a Double Fiber Single-Mode Fiber (SMF) optical cable. It has a minimum guaranteed optical budget of 6.3 dB, which typically is enough to reach about 10 km. However, distance is only an indicative parameter calculated for identification comfort. Finally, we calculate distance while keeping in mind the minimum (guaranteed) optical budget and the average attenuation of optical cabling in the industry. Our Brocade E100G-QSFP28-LR1 compatible transceiver uses a high-quality EML Laser transmitter operating at 1304.5- 1317.5 nm nominal wavelength and a 1304.5- 1317.5 nm PIN Photodiode receiver. This module supports DDM/DOM optical diagnostics and provides diagnostic data about the current operating conditions. This compatible module has a Double LC connector and module is designed for operation in standard temperature networking environments ranging from 0°-70°C. The transceiver chipset supports data rates ranging from 106.25 Gbps and such applications as 100G Ethernet (103.125Gbps). It is important to note that the mentioned application support will vary depending on the port where the module will be used, and it supported applications as well as module speed configuration during ordering process, but we can ensure that our module will support at least the same functionality as its OEM counterpart. This is a multi-purpose transceiver that can be used in a variety of different places in today’s networking. As a result, Internet Service Provider (ISP) Aggregation and Backbone, Mobile Operator Core Networks and Data Center Core Network interconnections are the most popular applications for this product.

Our compatible Brocade E100G-QSFP28-LR1 module is CE/RoHS certified, it meets product safety standards, and is compliant with QSFP28 Multi Source Agreement (MSA) SFF-8665, IEEE802.3cd 100GBASE-DR and 100G Lambda MSA industry standard. To ensure smooth operation, we have completed compatibility tests for this module with the most recent platforms of Brocade networking equipment, allowing us to encode transceiver EEPROM memory to be compatible with and work seamlessly in Brocade platforms. We are committed to quality, therefore before delivering our products, we conduct stringent quality inspections that include optical parameter measurements, connector cleanliness tests, and EEPROM memory data validation tests. If you have any questions, please Contact us. We will gladly learn about your needs and recommend the best compatible products from our portfolio.
