25G-SFP28-100I

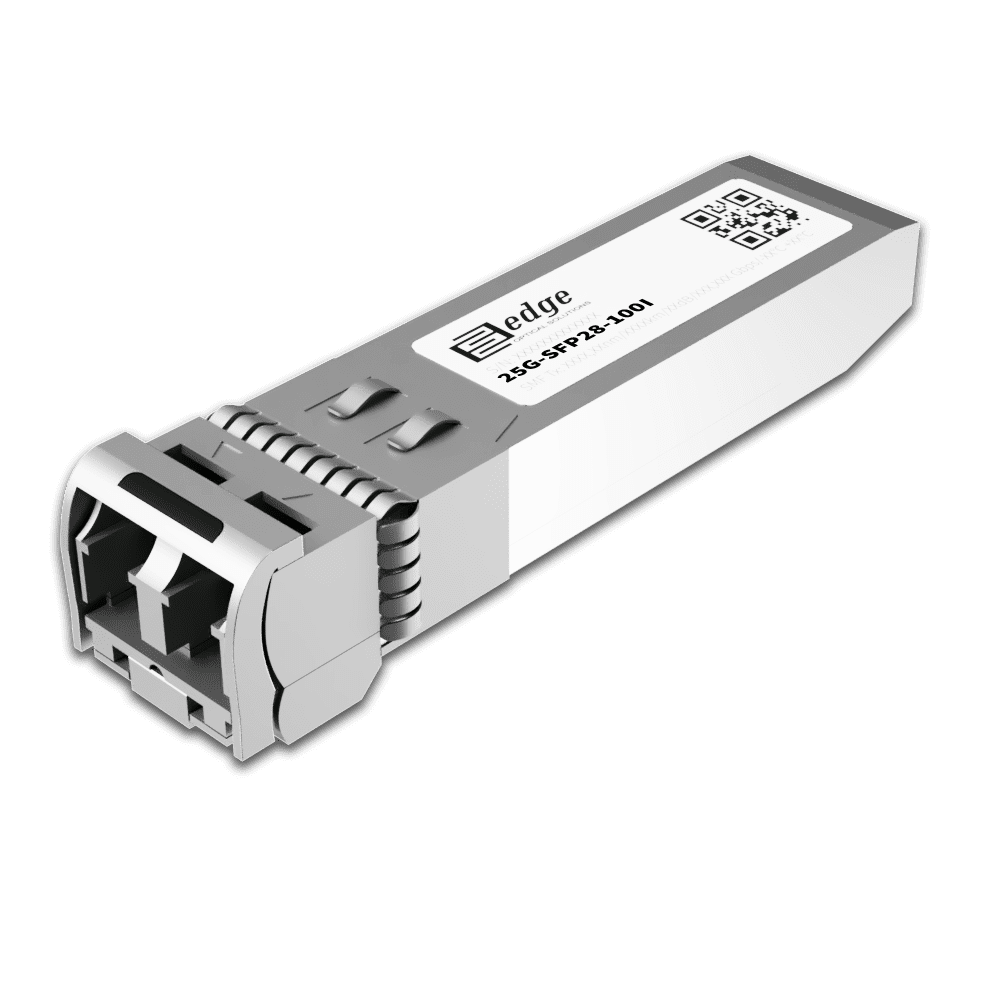

Multi-Vendor MSA Compatible 25GBASE-SR Industrial SFP28 Module: 25G-SFP28-100I
# Key Highlights
- Type:SFP28
- Compatibility:Multi-Vendor MSA Compatible
- Tx/Rx Wavelength:850 nm. / 850 nm.
- Fiber Type:Multi-Mode Fiber (MMF)
- Connectors:Double LC
- Optical Budget:2.6 dB
- Max. Distance:100m
- Data Rate:8.5-28.1 Gbps
- DDM/DOM:Supported
- Temperature:Industrial -45°C – +85°C
# Pricing & Ordering
SKU: 25G-SFP28-100I
€27.03
Lead Time: Below 1 Week in EU Countries
# Quality Assurance
Because of our comprehensive Testing Program, we are confident on quality of our products. Such approach empower us to cover all our products with:
# Key Technical Data
| Media Type: | Multi-Mode Fiber (MMF) |
|---|---|
| TX Wavelength: | 850 nm. |
| RX Wavelength: | 850 nm. |
| Minimum Optical Budget: | 2.6 dB |
| Maximum Distance: | 100m |
| Supported Data Rate: | 8.5-28.1 Gbps |
| Supported Applications: | 25G Ethernet (25.78Gbps), 10G Ethernet (10.31Gbps) |
| DDM/DOM: | Supported |
| Temperature Range: | Industrial -45°C – +85°C |

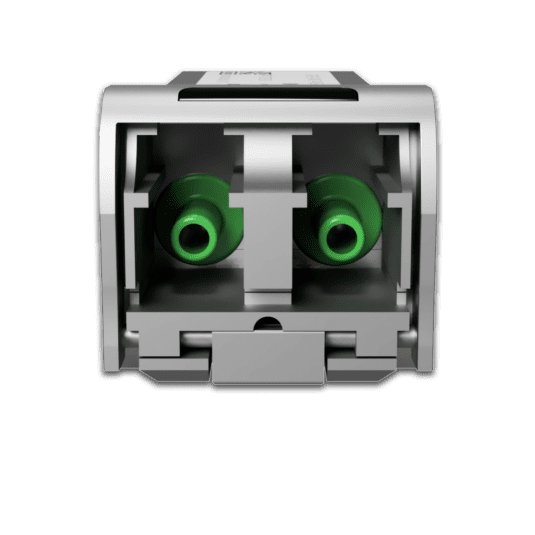

| Connectors: | Double LC |
| Tx Wavelength Bandwidth: | 20 nm (840-860 nm) |
| Rx Wavelength Bandwidth: | 20 nm (840-860 nm) |
| Minimum Transmitting Power: | -8.4 dBm |
| Maximum Transmitting Power: | 2.4 dBm |
| Receiver Sensitivity: | -11 dBm |
| Receiver Overload: | 2.4 dBm |
| Transmitter Type: | VSCEL Laser |
| Receiver Type: | PIN photodiode |
| Power: | +3.3V single power supply |
| Chipset: | II-VI, Macom, Neo, Oclaro, Renesas Electronics, MAXIM, SEMTECH, Sumitomo |
| Compliance: | IEEE 802.3by, RoHS-6, SFF-8432, CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, SFF-8402, SFF-8431, SFF-8472, SFP+ MSA |
# Product Documentation
# Product Description
25G-SFP28-100I is a 25GBASE-SR Industrial Multi-Vendor MSA Compatible SFP28 (Small Form-Factor Pluggable 28) Transceiver, operating over Double Fiber Multi-Mode Fiber (MMF) optical cable. It has minimum guaranteed optical budget of 2.6 dB, which in most cases is enough to reach 100 m over OM4 multi-mode fiber, or 70 m over OM3 multi-mode fiber. However, distance is just indicative parameter for comfort of identification that is calculated by taking into account minimal optical budget and average attenuation of optical cabling in industry. 25G-SFP28-100I uses top quality VSCEL (Vertical Cavity Surface Emitting Laser) transmitter and 25Gb/s PIN photodiode receiver. 25G-SFP28-100I 25GBASE-SR Industrial supports DDM/DOM optical diagnostics that provide real-time diagnostic information about the present operating conditions. 25G-SFP28-100I operates in Industrial -45°C – +85°C temperature range and has Double LC interface. 25G-SFP28-100I 25GBASE-SR Industrial SFP28 support 8.5-28.1 Gbps data rate and is designed for 25G Ethernet (25.78 Gbps) and 10G Ethernet (10.31 Gbps) applications. 25G-SFP28-100I SFP28 Double Fiber optical transceiver is multi-purpose module used in number of different places of today’s networking. Consequently, most popular use cases are in Internet Service Provider (ISP) Access and Metro Networks Data Center Core Networks and Enterprise Campus Networks.
25G-SFP28-100I 25GBASE-SR Industrial SFP28 transceiver is CE/RoHS certified and is compliant with product safety standards. 25G-SFP28-100I is fully compliant to SFF-8431 and SFF-8472 Multi Source Agreement (MSA), IEEE 802.3by 25 Gb/s specification. Consequently, compliance to above standards guarantees that module is compatible and works with majority of networking equipment, where is not implemented special algorithm for protection against third party modules. However – our technical team has accumulated deep expertise in custom-encoded firmware’s for 25GBASE-SR Industrial SFP28 transceiver in order to make it work in almost any brand equipment. We will be glad to know your requirements.
